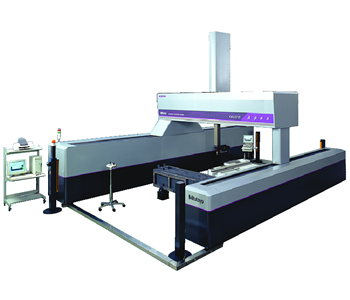

FALCIO-APEX G (CNC)

High precision separate slide type CMM

FALCIO-Apex provides the performance level of a bridge type CMM, although it has been specially sized for high precision measurement of workpieces of various sizes and accuracy. Fixed to the floor, this CMM allows virtually unlimited loading weight as the workpiece is not placed on the device.

FALCIO-Apex G series, movable bridge type CNC CMM on separate slide, available in 39 size.

Measuring Dimensions:

X = between 2000 and 4500 mm
Y = between 3000 and 6000 mm
Z = between 1200 and 2000 mm

Length measurement deviation (1):
E0, MPE = 3,5 + 4L/1000 µm

Repeatability (2):
R0, MPL = 3,5 µm

Max. drive speed:
500 mm/s

Maximum acceleration:
780 mm/s²

Permissible temperature range:
18°C – 22°C

Maximum workpiece weight:
Depends on the resistance of the ground

(1) According to ISO10360-2: 2009, Length measurement error, L = measured length in mm.

(2) According to ISO10360-2: 2009, the maximum allowable limit of the repeatability range
