ANALOG MEASURING PROBES

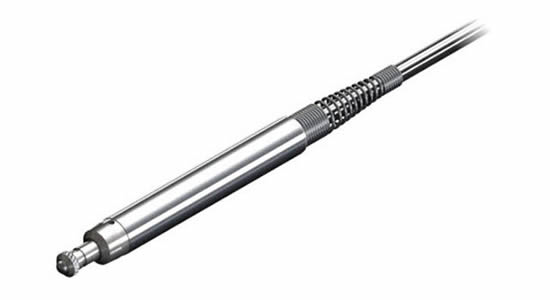

AX / S - Spring Driven

• ± 0.25, ± 0.5, ± 1, ± 1.5, ± 2.5, ± 5 & ± 10 mm measuring range
• Sensitivity 1 µm
• Repeatability up to 0.05 µm
• Tip force 0.7 N (different options available)
• IP65 protection
• Spring driven

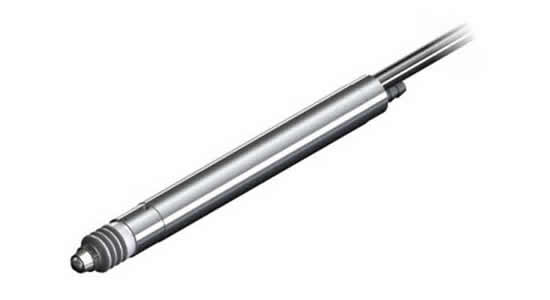

AX / P - Pneumatic Driven

• ± 1, ± 2.5, ± 5 & ± 10 mm measuring range
• Sensitivity 1 μm
• Repeatability up to 0.05 μm
• Tip force 0.7 N (different options available)
• IP65 protection
• Pneumatically driven
• Vacuum suction option is also available.

AJ / P - Jet Pneumatic Driven

• ± 1, ± 2.5, ± 5 & ± 10 mm measuring range
• Same performance as pneumatic probes
• Pneumatic drive provided by built-in piston
• IP50 protection

SPRING, PNEUMATIC AND VACUUM SUCTION PROBES

AT - Light Touch

• ± 1, ± 1.5, ± 2.5, ± 5 & ± 10 mm measuring range
• Sensitivity 1 μm
• Repeatability up to 0.05 μm
• Tip force 0.18N (options available)
• IP50 Protection
• Spring driven

AW - Very low end force

• ± 5 mm measuring range
• Sensitivity 1 μm
• Repeatability up to 0.05 μm
• Tip force 0.03 N
• IP50 Protection
• Spring and pneumatic driven

A6G - Small Diameter Probes (06 mm)

• ± 1 measuring range
• Sensitivity 1 μm
• Repeatability up to 0.05 μm
• Tip force 0.7N
• IP65 Protection
• Spring and pneumatic driven

INTEGRATED OR WIRED ELECTRONIC PROBES

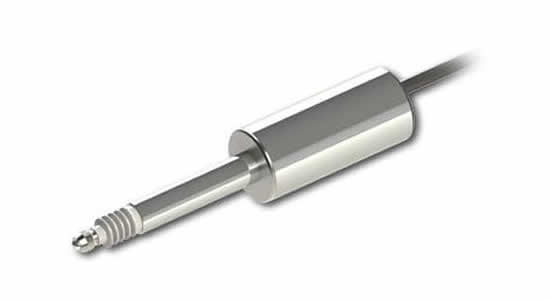

G Series Issue Driven

• ± 1, ± 2.5, ± 5, ± 10 measuring ranges
• 8mm probe body 19mm electronics housing
• Voltage, Current output
• Flatness 0.2% FSO

BICM Probes (Wired Condition Box Module)

• DC signal enhanced cable
• +/- 15V or 24V DC input
• +/- 5V, +/- 10V output signal or 0-5, 0-10V
• IP 67 protection available
• For BICM Data, see. page 25
